0.5A 1.2V Pancake Stepper Motor NEMA 11 Flat Stepper Motor High Torque

Name: 05A 12V Pancake Stepper Motor NEMA 11 Flat Stepper Motor High Torque
Brand: Casun
Price: 9.68 USD

Wholesale 0.5A 1.2V Pancake Stepper Motor NEMA 11 Flat Stepper Motor High Torque from china suppliers

Brand Name : Casun

Model Number : P28SHD4610-2A

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1PC

Price : $9.68-13.46

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Steper angle : 1.8degree

Phase : 2

Rated voltage : 1.2V

Rate current : 0.5A

Holding torque : 15mN.m

Detent torque : 2mN.m

Weight : 30g

Customized : The motor can be designed &manufactured with customized request.

Contact Now

0.5A 1.2V Pancake Stepper Motor NEMA 11 Flat Stepper Motor High Torque

Product Overview

NEMA 11 0.5A Micro flat stepper motor 1.2V stepper motor for printing machinery feeder. The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

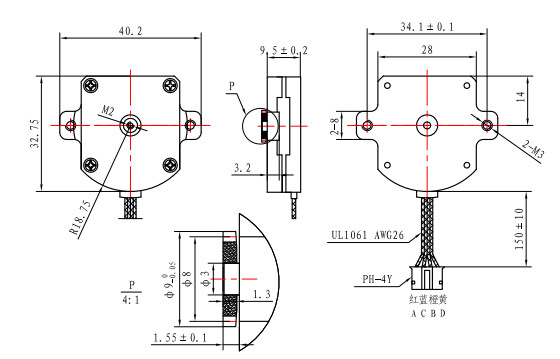

Dimensions

0.5A 1.2V Pancake Stepper Motor NEMA 11 Flat Stepper Motor High Torque

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.5A
Holding Torque	15 mN.m
Resistance	2.4 Ω
Inductance	0.53 mH
Rotor Inertia	2 g·cm²
Motor Weight	0.02 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Motor Length	Current	Holding Torque
P28SHD4611	9.5mm	0.5A	16mN.m
P28SHD4701	10.6mm	0.5A	20mN.m
P28SHD4750	13-15mm	0.5A	25mN.m
P28SHD4950	17.9mm	0.5A	35mN.m

Optional Accessories

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese
